Series FU2460

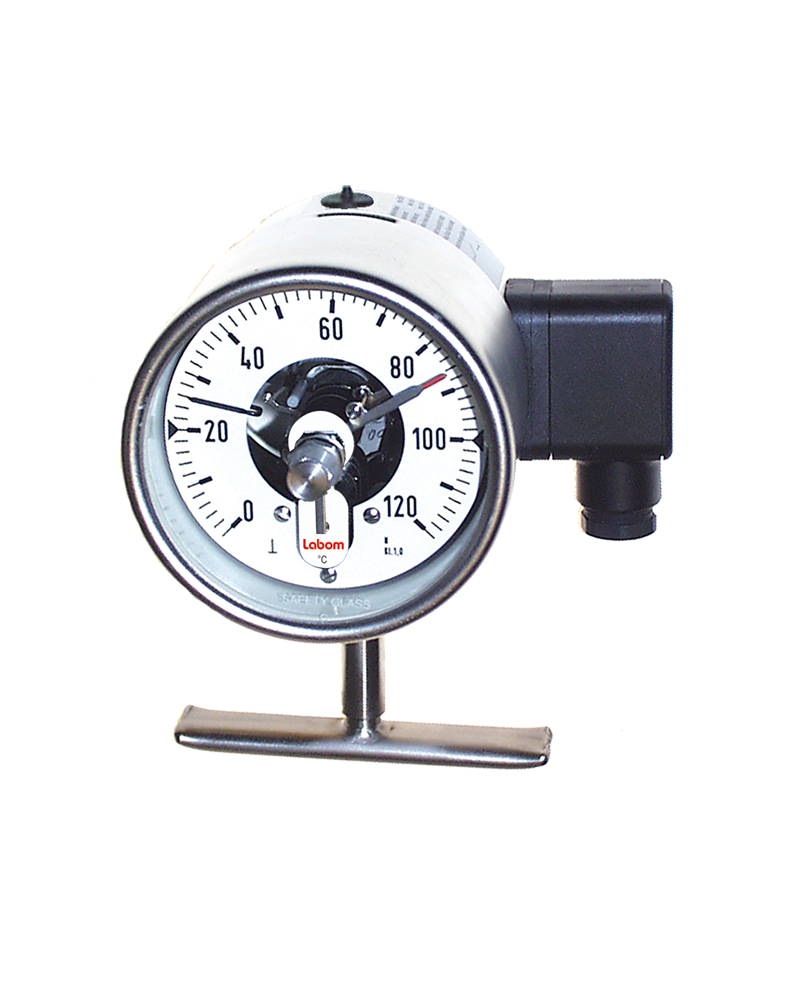

Gas expansion thermometer NS 100/160, switch function, clip-on bulb
Application area
These thermometers with switch function (electrical contact device) are suitable for use outdoors and in aggressive environments. Gas expansion thermometers with clip-on bulb offer some benefits to the user: no change in pipeline cross-section; the line thus remains piggable and retrofitting can be carried out without interfering with the process, simple mounting. If the exact orientation of the indicator is not known before mounting, we recommend using the positionable version. With this version the case may be re-positioned once by ± 180° with respect to the pipeline.
Technical data
Download Data sheet| Measuring range |
|
| Accuracy Temperature |
|
| Material wetted parts |
|
| Material case |
|
| Process connection |
|
| Output signal |
|
| Contact |
|
| Requirement |
|
| Degree of protection |
|
Certificates
ZER_029
PTB 00 ATEX 2049
ZER_028
PTB 99 ATEX 2219 X
Documentation & Instructions
KE_053
EU declaration of conformity
TA_039 Switch contacts in pressure and temperature devices
Technical instructions
XA_021 Magnatic snap contact in mechanical gauges
Ex safety instructions
XA_014
Ex safety instructions
XA_013 Inductive contact Pepperl+Fuchs in mechanical gauges
Ex safety instructions
BA_066 (FP FU) Mechanical thermometers with switch function
Operating instructions
DB_T3-030
Data Sheet
